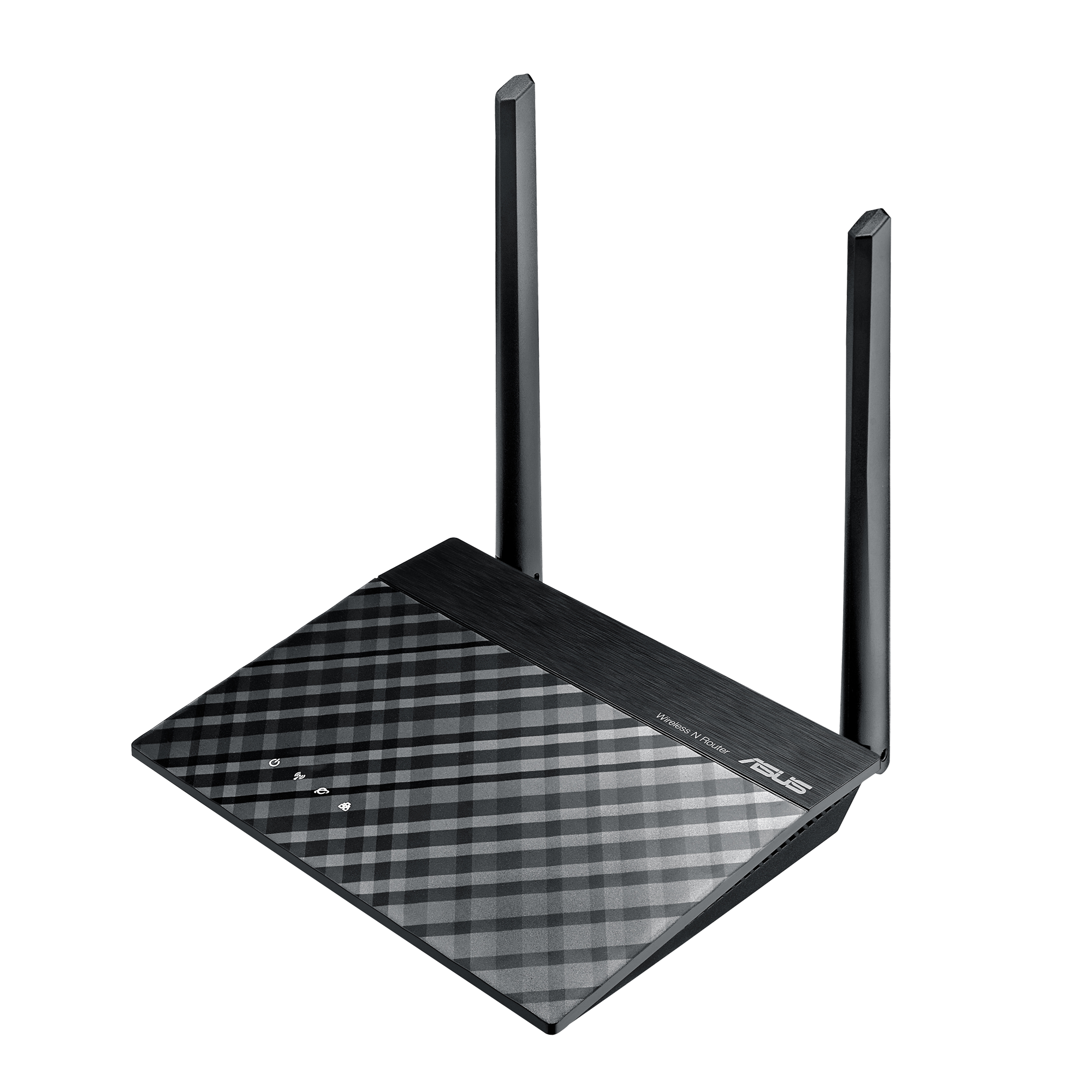

Asus RT-N12 80211n 24GHz

Product Description

Asus RT-N12 802.11n 2.4GHz
Wi-Fi Standards:

IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Wi-Fi Band:
2.4 GHz only
Data Rate:
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: Up to 300 Mbps (2×2 MIMO)
Modulation Technology:
OFDM, DSSS, CCK, BPSK, QPSK, 16-QAM, 64-QAM
Transmit Power:
< 20 dBm
Antenna:
2 × 5 dBi Detachable Omni-directional Antennas (RP-SMA)
Wireless Functions:
SSID Broadcast Enable/Disable
MAC Address Filtering
WDS (Repeater/Bridge Mode)
Wireless Scheduling
WMM
Wireless Statistics
Wireless Security:
WEP (64/128-bit)
WPA/WPA2-PSK
WPA/WPA2-Enterprise

HARDWARE FEATURES

CPU:
Broadcom-based SoC (model varies by version)
Memory:
RAM: 32 MB
Flash: 8 MB
Ports:
4 × 10/100 Mbps LAN ports (RJ45)
1 × 10/100 Mbps WAN port (RJ45)
Buttons:
WPS
Reset
Power On/Off
Power Supply:
Input: 100–240V ~ 50/60Hz
Output: 12V ⎓ 1A

SOFTWARE & FEATURES

Operating Modes:
Wireless Router Mode
Repeater Mode
Access Point Mode
Media Bridge Mode
Management:
Web-based GUI
Firmware Upgrade (Web UI)
Remote Management
Traffic Monitoring
DDNS
IPv4 / IPv6 Support
DHCP Server, Address Reservation
NAT & Port Forwarding:
Virtual Server
Port Triggering
DMZ
UPnP
QoS:
Bandwidth Management
WMM
Firewall:
DoS Protection
SPI Firewall
MAC/IP/URL/Keyword Filtering

PHYSICAL & ENVIRONMENT

Dimensions:
Approx. 146 × 111 × 24 mm (5.7 × 4.4 × 0.9 in)
Weight:
Around 270 g
Operating Temperature:
0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature:
-20°C ~ 70°C (-4°F ~ 158°F)
Humidity:
Operating: 10% ~ 90% (non-condensing)
Storage: 5% ~ 90% (non-condensing)

PACKAGE CONTENTS

ASUS RT-N12 Router
2 Detachable Antennas
Power Adapter
RJ45 Ethernet Cable
Quick Start Guide
Support CD (varies by region)

Ideal For:

Small to medium homes or offices
Basic tasks like web browsing, HD video streaming, and wireless printing
Acting as a repeater or access point to extend Wi-Fi coverage
