Tp-link TL-WR843ND 80211n 24GHz

Product Description

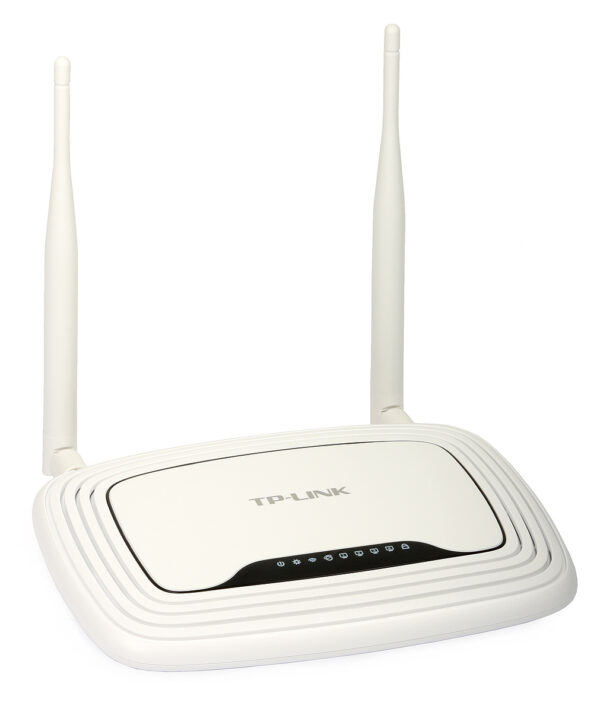

TP-Link TL-WR843ND 802.11n 2.4GHz

Interfaces:
4 × 10/100 Mbps LAN Ports
1 × 10/100 Mbps WAN Port
Buttons:
WPS/Reset
Operation Mode Switch (to toggle between Router and Client Router)
Power On/Off
Power Supply:
9VDC / 0.85A
Antenna:
2 × 5dBi Detachable Omni-directional Antennas (RP-SMA)
Dimensions:
7.6 × 5.1 × 1.3 in (192 × 130 × 33 mm)

WIRELESS FEATURES

Wi-Fi Standards:
IEEE 802.11n/g/b
Frequency:
2.4–2.4835 GHz
Speed:
802.11n: up to 300 Mbps
802.11g: up to 54 Mbps
802.11b: up to 11 Mbps
Wireless Modes:
Client Router
Standard Router
Wireless Functions:
Wireless Radio On/Off
WDS Bridge
WMM (QoS)
Wireless Statistics
Wireless Security:
64/128/152-bit WEP
WPA/WPA2
WPA-PSK/WPA2-PSK
Transmission Power:
< 20 dBm (EIRP)
Reception Sensitivity:
270M: -68 dBm
130M: -68 dBm
108M: -68 dBm
54M: -68 dBm
11M: -85 dBm
6M: -88 dBm
1M: -90 dBm

SOFTWARE FEATURES

WAN Types:
Dynamic IP
Static IP
PPPoE
PPTP (Dual Access)
L2TP (Dual Access)
BigPond
QoS:
WMM
Bandwidth Control
VPN Pass-Through:
PPTP, L2TP, IPSec (ESP Head)
Firewall & Access Control:
SPI Firewall
DoS Protection
IP/MAC/Domain Filters
IP & MAC Binding
Parental Controls
Access Schedule & Rule Management
DHCP Server Features:
Server, Client
Client List
Address Reservation
Port Forwarding:
Virtual Server
Port Triggering
UPnP
DMZ
Dynamic DNS:
DynDNS
Comexe
NO-IP
Guest Network:
1 × 2.4GHz Guest Network
IPv6 Support:
Yes (along with IPv4)

PACKAGE CONTENTS

TL-WR843ND Router
2 Detachable Antennas
Power Adapter
RJ45 Ethernet Cable
Passive PoE Injector
Resource CD
Quick Installation Guide

SYSTEM & ENVIRONMENT

Compatible OS:
Windows 98SE through Windows 10
macOS
UNIX/Linux
NetWare
Certifications:
CE, FCC, RoHS
Operating Conditions:
Temp: 0°C~40°C
Humidity: 10%~90% (non-condensing)
Storage Conditions:
Temp: -40°C~70°C
Humidity: 5%~90% (non-condensing)
